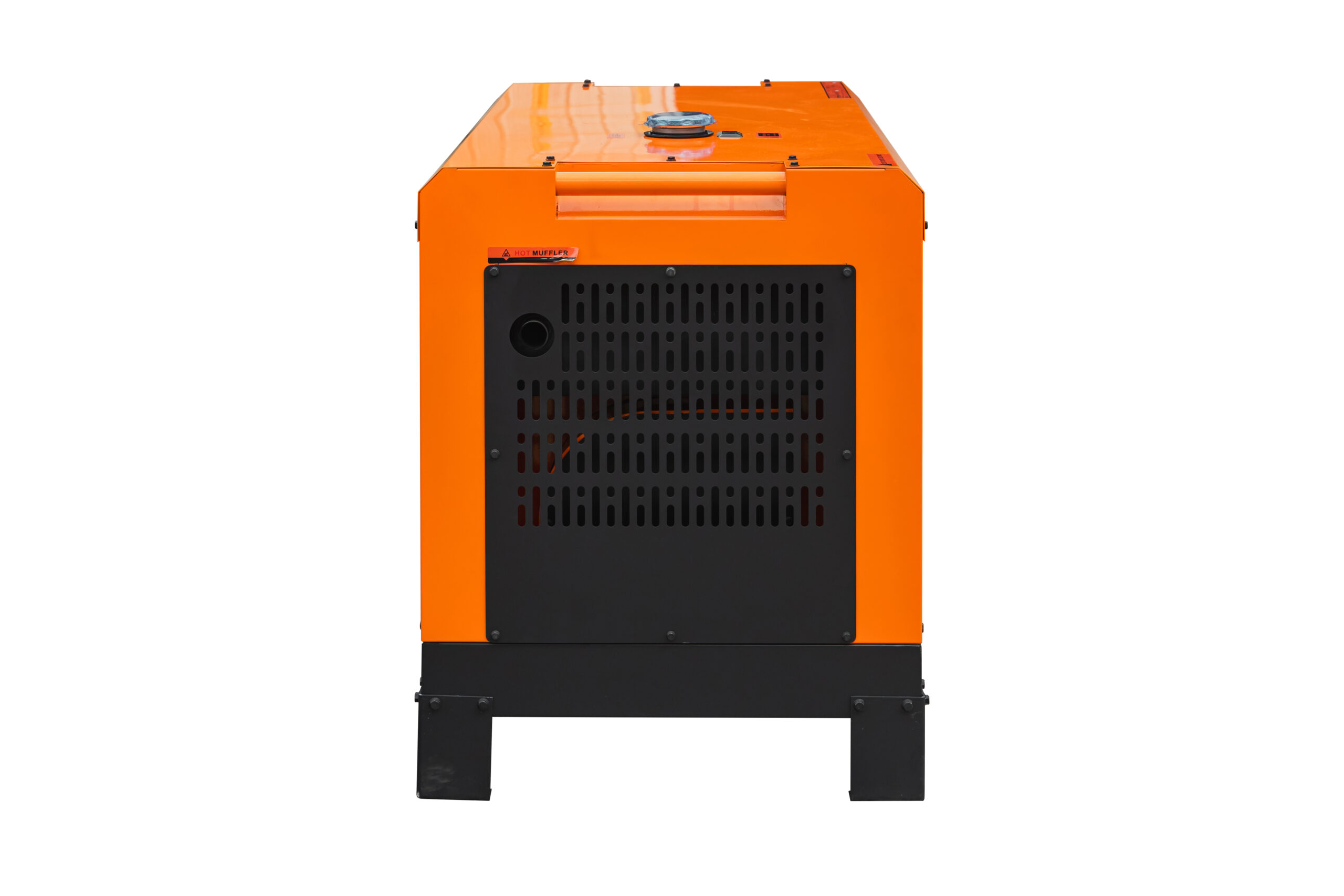

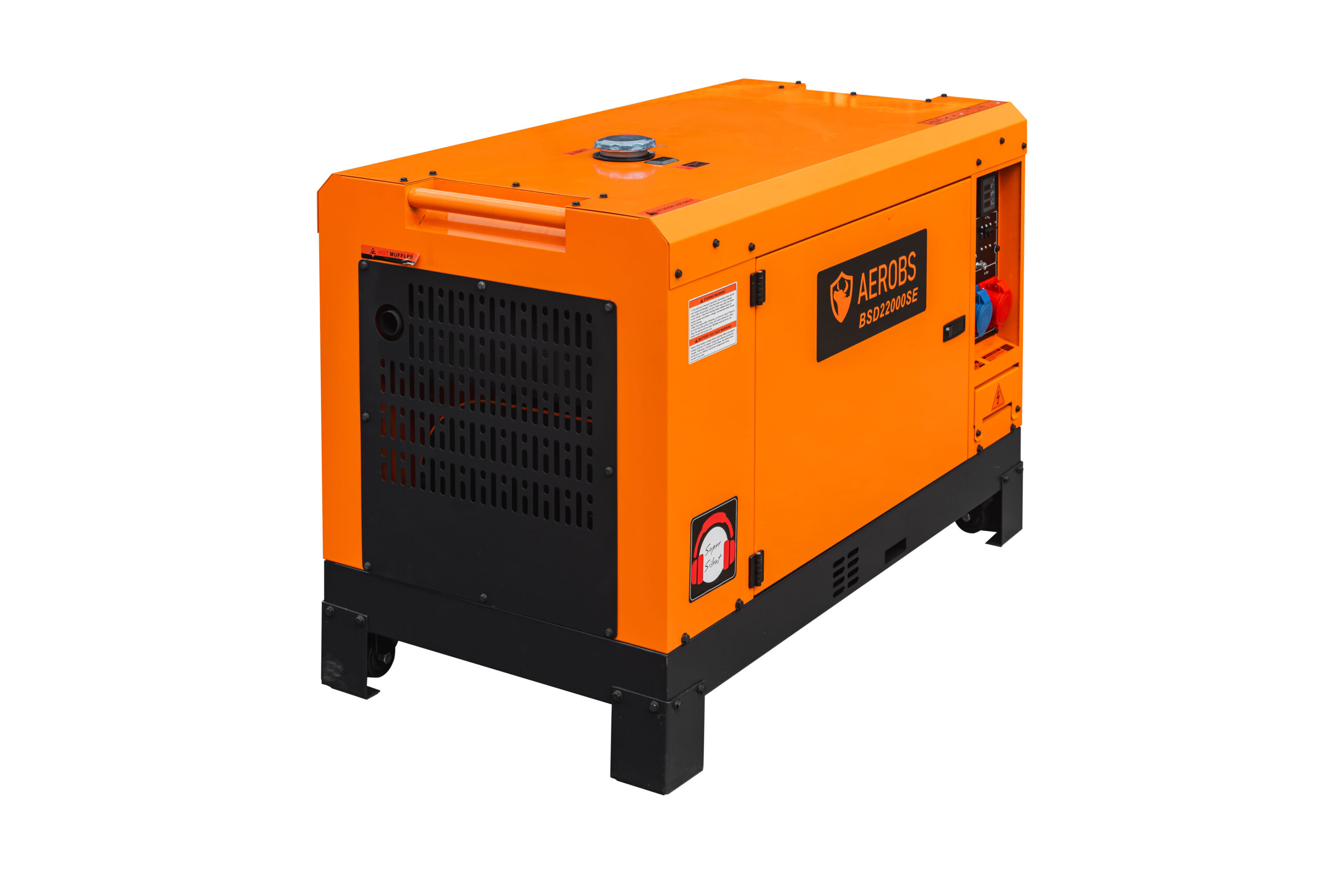

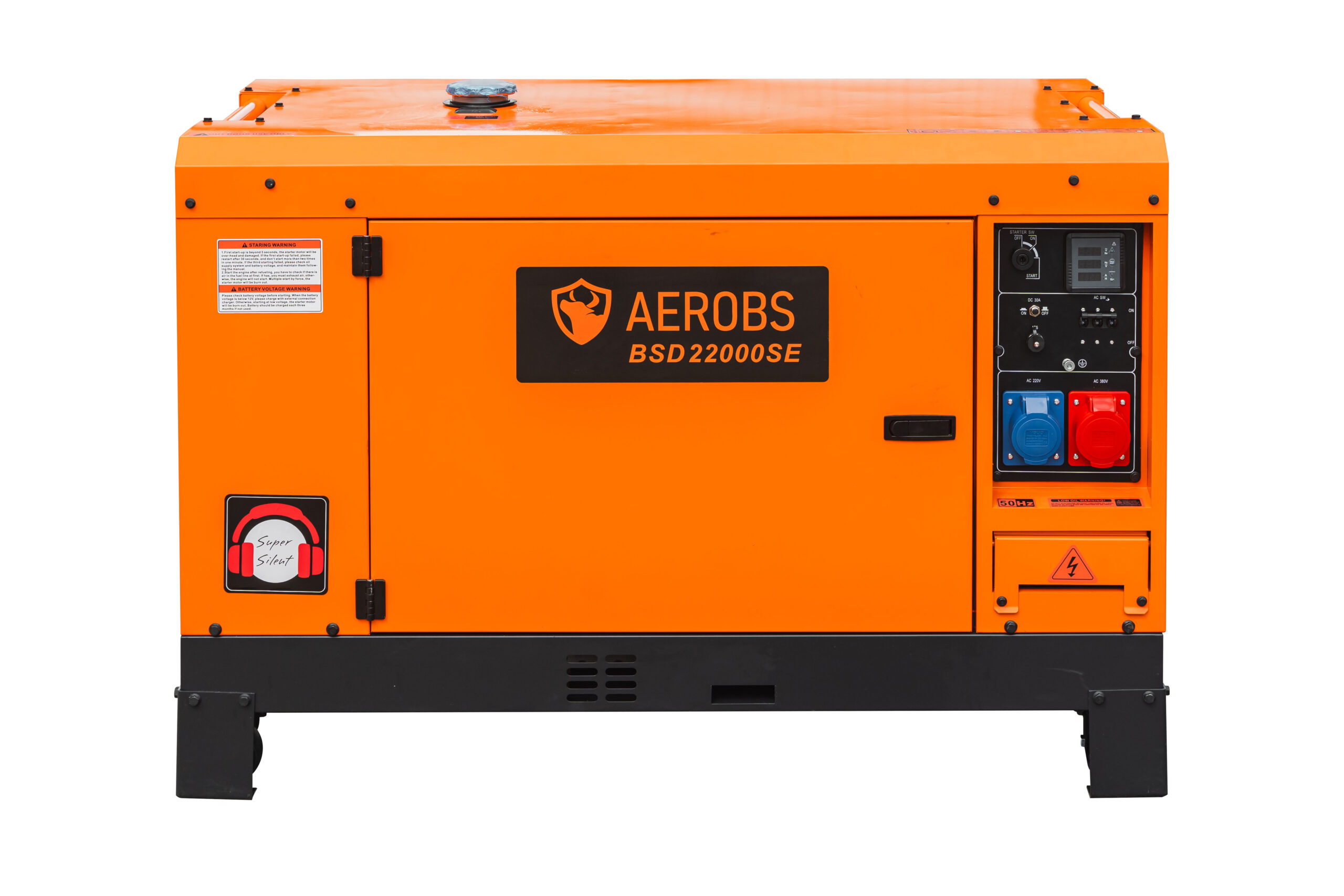

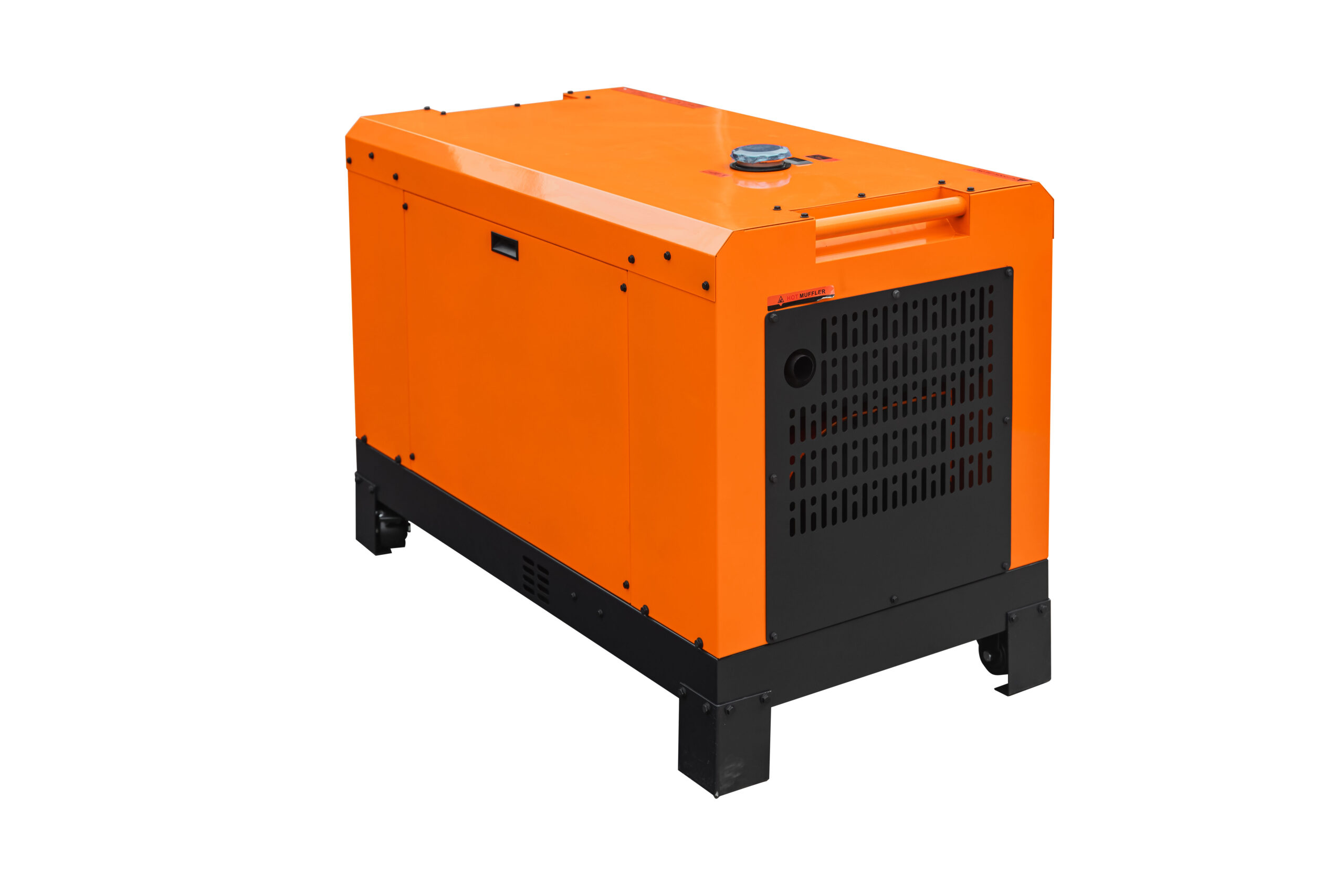

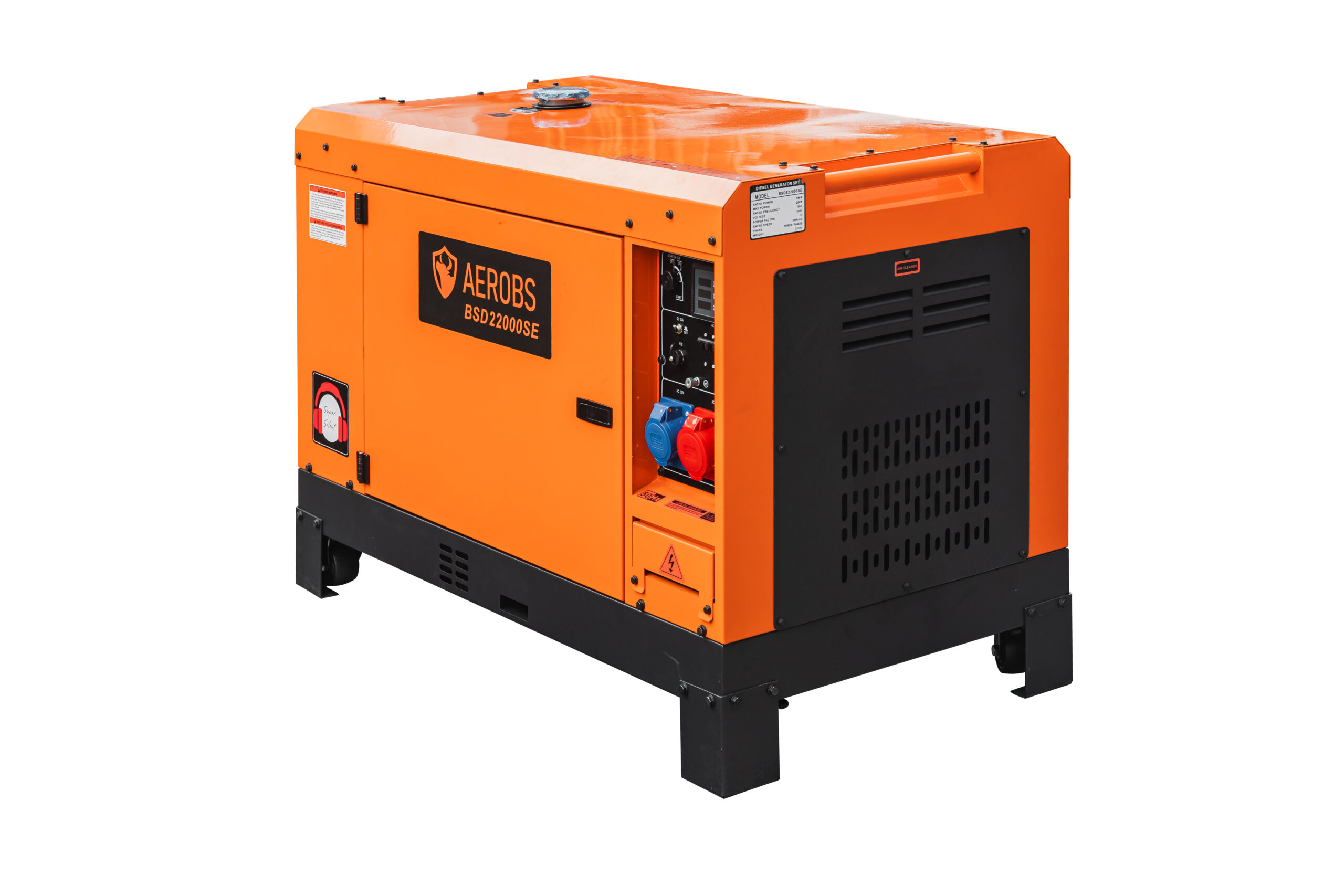

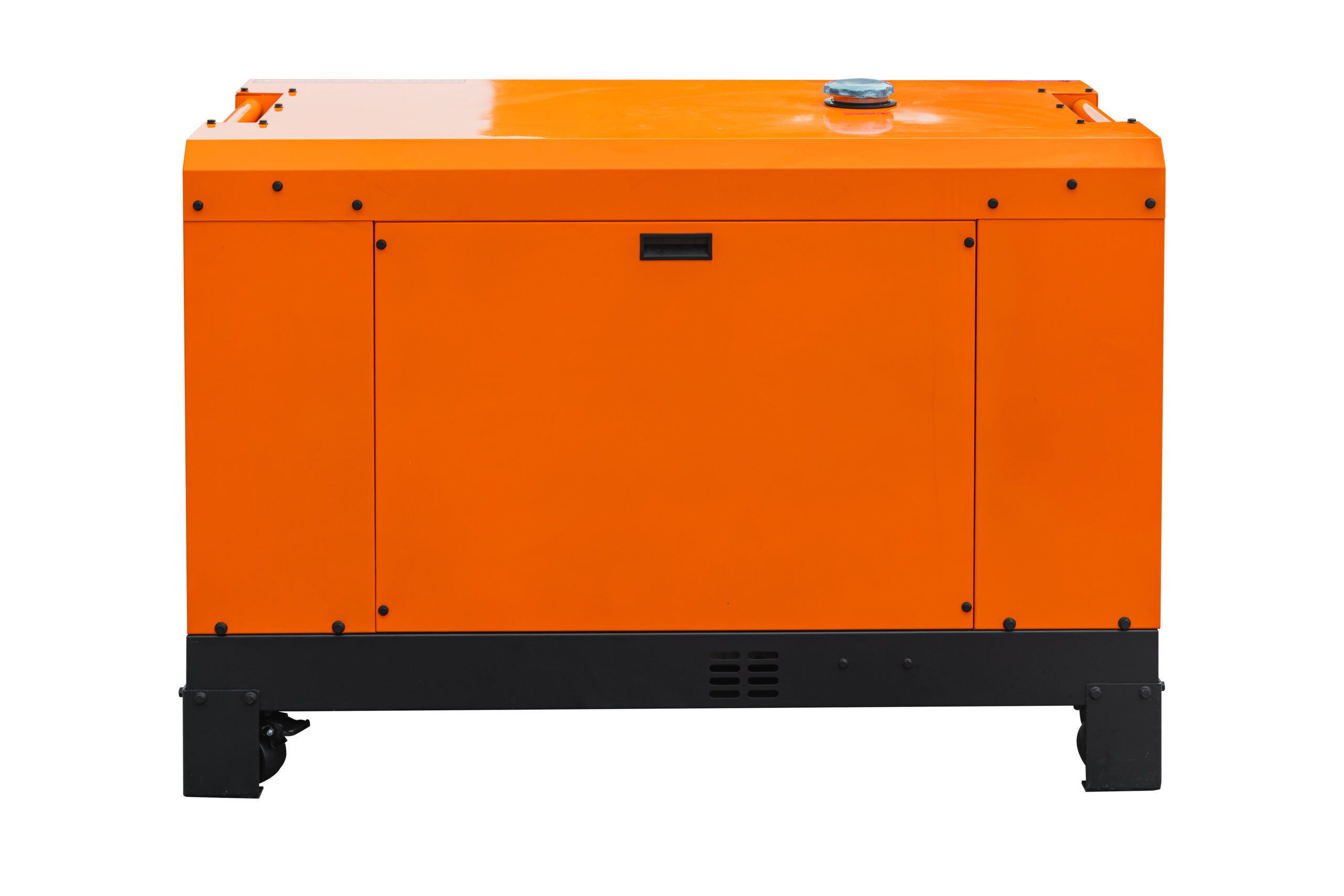

Diesel Generator, Two-Cylinder Diesel GeneratorBSD12000SE/BSD15000SE/BSD18000SE/BSD20000SE/BSD22000SE
| Model |
BSD12000SE |
BSD15000SE |
BSD18000SE |
BSD20000SE |
BSD22000SE |
| Engine Model |
BS2V88F |
BS2V92F |
BS2V95F |
BS2V100F |
BS2V105F |
| Bore Stroke (mm) |
8875 |
9275 |
9588 |
10088 |
10588 |
| Displacement (cc) |
912 |
997 |
997 |
1382 |
1523 |
| Rated Frequency (Hz) |
50 |
50 |
50 |
50 |
50 |
| Rated Voltage (V) |
230 |
230 |
230 |
230 |
230 |
| Rated Power (kw) |
10 |
12 |
15 |
16 |
18 |
| Max.Power (kw) |
11 |
13 |
16 |
17 |
20 |
| Compression Ratio |
20:01 |
20:01 |
20:01 |
20:01 |
20:01 |
| Starting System |
Electric Start |
Electric Start |
Electric Start |
Electric Start |
Electric Start |
| Fuel Tank Capacity (L) |
25 |
25 |
25 |
25 |
25 |
| Noise Level(7m)dB(A) |
74 |
74 |
74 |
74 |
74 |
| Gross Weight (kg) |
260 |
285 |
310 |
325 |
335 |
| Dimensions (LWH) (mm) |
1200670875 |
1200670875 |
1200670875 |
1200670875 |
1200670875 |
| Quantity(20GP/40HQ) |
35/96 |
35/91 |
35/83 |
35/80 |
35/77 |
